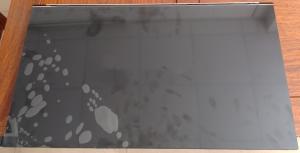

23.0" 1920×1080 200cd/M2 LCD Display Panels 95PPI LM230WF7-SSC2

Name: 230quot 19201080 200cdM2 LCD Display Panels 95PPI LM230WF7SSC2
Brand: LG DISPLAY
Price: 1 USD

Quality 23.0" 1920×1080 200cd/M2 LCD Display Panels 95PPI LM230WF7-SSC2 wholesale

Brand Name : LG DISPLAY

Model Number : LM230WF7-SSC2

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 200PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM230WF7-SSC2

BRAND : LG DISPLAY

SIZE : 23.0INCH

BRIGHTNESS : 200CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080, FHD, 95PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM230WF7-SSC2 Application Features

Basic Information :	Brand	Model	Type	Model Alias

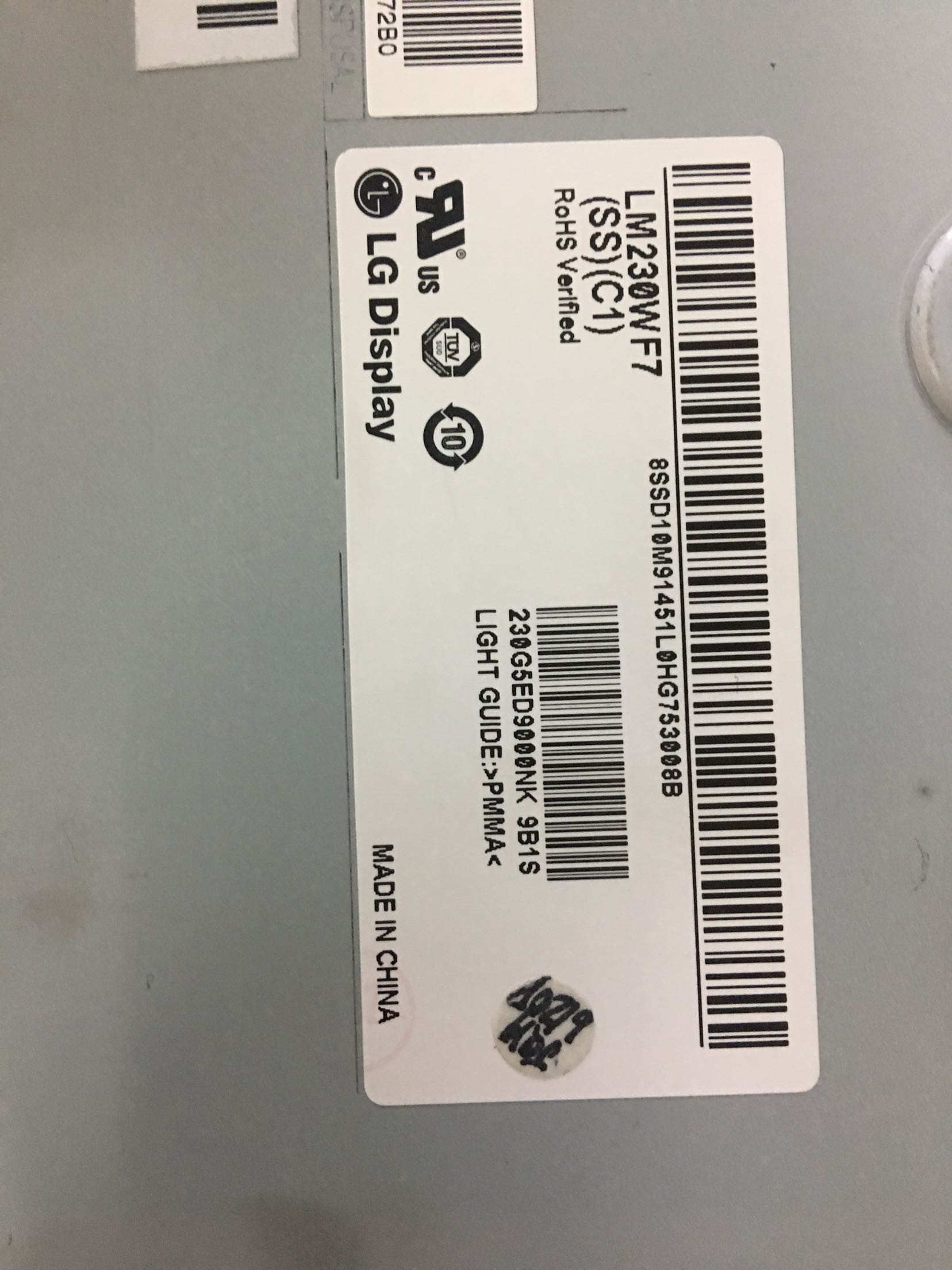

Basic Information :		LM230WF7-SSC2	a-Si TFT-LCD , LCM	LM230WF7 (SS)(C2)
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LM230WF7-SSC2 Mechanical Features

Panel Size :	23.0 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1920(RGB)×1080, FHD	RGB Vertical Stripe	0.0875×0.2652 mm	0.2652×0.2652 mm [95PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	509.184×286.416 mm	-	-	-
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type	3-side borderless
Touchscreen :	Touch Points	TP Controller	Signal Type	Touch Tech
Touchscreen :	-	-	-	In-Cell Touch

LG Display LM230WF7-SSC2 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	-	IPS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	89/89/89/89 (Typ.)(CR≥10)	Symmetry	14 (Typ.)(G to G) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	75%	96%	74%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	77%	56%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.33 (Max.)(9 points)

LG Display LM230WF7-SSC2 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	650/775mA (Typ./Max.)		5.0V (Typ.)			3.1/3.88W (Typ./Max.)
Interface Features :	Position	Type	Interface
Interface Features :		Connector	LVDS (2 ch, 8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	UJU	IS100-L30B-C23	1 pcs	1.0 mm	30 pins

LG Display LM230WF7-SSC2 Electronics Features

Frame Rate :	60Hz
Reverse Scan :	No
