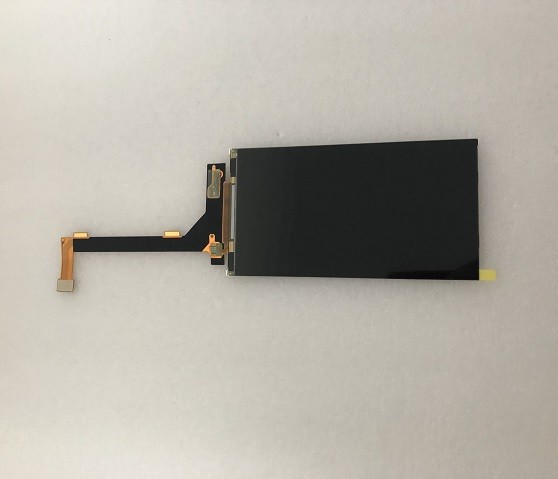

5.5 Inch Sharp CG Silicon 450cd/m² 1080(RGB)×1920 TFT LCD Display LS055T3SX05

  • 1
  • 2
  • 3

Brand Name : Tianma

Model Number : LS055T3SX05

Certification : ISO9001

MOQ : 1PCS

Payment Terms : TT / Escrow 10 / Paypal / WesternUnion

Supply Ability : 5000PCS

Delivery Time : 1-3 Days

Packaging Details : With Original Factory Package

Price : 120USD

Size : 5 Inch

Screen Type : CG-Silicon, LCM

Pixel Number : 1080(RGB)×1920 [FHD] 403PPI

Luminance : 450cd/m² (Typ.)

Viewing Angle : 80/80/80/80 (Typ.)(CR≥10)

Contrast Ratio : 1000:1 (Typ.) (TM)

Response : 35 (Max.)(Tr+Td)

Backlight : WLED [6S2P] , W/O Driver

Signal Type : MIPI (4 data lanes) , 40 pins Connector

Max. Ratings : Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C

Contact Now

1. HIGHEST QUALITY STANDARD DISPLAYS:

As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
2. Sharp LS055T3SX05 Optical Details:
Basic Information : Luminance 450 cd/m² (Typ.) Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 35 (Max.)(Tr+Td) (ms)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Operating Mode New Mode2, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.300; Wy:0.310 Support Color 16.7M (8-bit)
Color Temperature 7525K White Uniformity 1.11/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 83% sRGB 100% coverage
Adobe RGB 80% coverage DCI-P3 85% coverage
Rec.2020 62% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
3. Sharp LS055T3SX05 Mechanical Details:
Pixel Features : Number of Pixel 1080(RGB)×1920 [FHD] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.021×0.063 mm Pixel Pitch(W×H) 0.063×0.063 mm [403PPI]
Physical Size : Active Viewing 68.04(W)×120.96(H) mm Overall Dim. 70.44(W)×129.59(H) mm
Bezel Opening - Overall Depth 1.46±0.15 mm
Outline Features : Form Shape Flat Rectangle Orientation Portrait type
Aspect Ratio(W:H) 9:16 Shape Style -
Other Detail : Mass 27.0g (Typ.) Surface -

4.Sharp LS055T3SX05 Interface Details:

Signal Electrical : Input Current 10.3/7.8/5.6mA (Typ.)(IOICC/AIDD+/AIDD-) Input Voltage 1.8/5.0/-5.0V (Typ.)(IOVCC/AVDD+/AVDD-)
Consumption - Signal Interface MIPI (4 data lanes)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
Panasonic AXE540124 1 pcs 0.4 mm 40 pins

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
