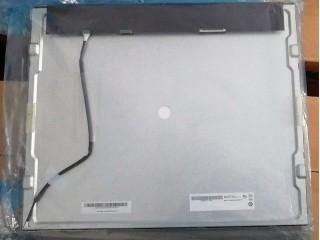

G190EG02 V104 19.0 INCH 1280×1024 AUO TFT LCD 350 cd/m² 89/89/89/89

  • 1
  • 2
  • 3

Brand Name : AUO

Model Number : G190EG02 V104

Certification : ISO9001

Place of Origin : TAIWAN

MOQ : 1PCS

Price : 60USD

Payment Terms : T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW

Supply Ability : 1000PCS

Delivery Time : 1 DAY

Packaging Details : Package Box : Amount Weight Size (L×W×H) 8 pcs / box 17.0 Kgs 489×293×420 mm (L×W×H)

Size : 19 Inch

Resolution : 1280*1024

Brightness : 350 cd/m² (Typ.)

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Best View on : Symmetry

Display Colors : 16.7M 70% NTSC

Signal Interface : LVDS (2 ch, 8-bit) , 30 pins Connector

Display Mode : MVA, Normally Black, Transmissive

Lamp Type : WLED , 50K hours , With LED Driver

Environment : Operating Temp.: -15 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C

Contact Now

G190EG02 V104 19.0INCH AUO TFT-LCD 1280(RGB)×1024 PiXEL -15 ~ 70 °C industrial LCD paneL
1. Main Information:
AU Optronics Corp.G190EG02 V104 is a 19.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -15 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, Matte . Based on its features,this model be applied to Industrial, Medical Imaging etc.
2. AUO G190EG02 V104 Mechanical Features:
Screen Size : 19 Inch
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1280(RGB)×1024, SXGA RGB Vertical Stripe 0.098×0.294 mm 0.294×0.294 mm [86PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
376.32×301.056 mm 380.32×305.06 mm 396×324 mm 15.8 (Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 5:4 Landscape type -
Other Spec : Mass Panel Cover Surface Treatment
1.74Kgs (Typ.) - Antiglare
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel

3. AUO G190EG02 V104 Optical Features:

Basic Information : Luminance Work Mode Contrast Ratio
350 cd/m² (Typ.) MVA, Normally Black, Transmissive 2000:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Typ.)(CR≥10) 15/5 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 16.7M (8-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
73% 93% 72%
DCI-P3 Coverage Rec.2020 Coverage Remarks
75% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25/1.33 (Typ./Max.)(9 points)

4. AUO G190EG02 V104 Backlight Features:

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type (Bottom side) 50K(Min.) - - -
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Connector
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
STM MS24019RHD 1 pcs 9 pins 1.25 mm
WLED Driver Electrical : Input Voltage Input Current Power Consumption
12.0V (Typ.) 0.91A (Typ.)

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
