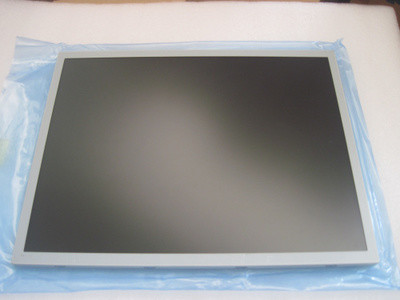

15 Inch NEC TFT LCD NL10276AC30-42C With Hight Brightness Lamp Repaceable

  • 1
  • 2

Brand Name : Toshiba

Model Number : NL10276AC30-42C

Certification : ISO9001

Place of Origin : Japan

MOQ : 1PCS

Payment Terms : TT / Escrow 10 / Paypal / WesternUnion

Supply Ability : 500PCS

Delivery Time : 1-3 Days

Packaging Details : With Original Factory Package

Size : 15 Inch

Screen Type : LCM, a-Si TFT-LCD

Pixel Number : 1024(RGB)×768 (XGA) 85PPI

Luminance : 600 cd/m² (Typ.)

Viewing Angle : 80/80/80/80 (Typ.)(CR≥10)

Contrast Ratio : 600 : 1 (Typ.) (TM)

Response : 3/5 (Typ.)(Tr/Td) ms

Backlight : WLED , 70K hours , With LED Driver

Signal Type : LVDS (1 ch, 6/8-bit) , Connector 20 pins

Max. Ratings : Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Contact Now

1. HIGHEST QUALITY STANDARD DISPLAYS:

As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
2.NEC NL10276AC30-42C Optical Features:
Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
600 (Typ.) 80/80/80/80 (Typ.)(CR≥10) 3/5 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
- TN, Normally White, Transmissive 600 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 262K/16.7M (6-bit / 6-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
62% 80% 62%
DCI-P3 Coverage Rec.2020 Coverage Remarks
65% 47% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25/1.33 (Typ./Max.)(9 points)

3.NEC NL10276AC30-42C Mechanical Features:

Panel Size : 15.0"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1024(RGB)×768 [XGA] RGB Vertical Stripe 0.297×0.297 [85PPI] 0.099×0.297
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
304.128(H) × 228.096(V) 307.4(H) × 231.3(V) 326.5(H) × 253.5(V) 11.8±0.3 mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 4:3 (H:V) -
Mounting : Side mounting holes (4-M3) on left, right bezel
Other Detail : Weight Panel Cover Treatment
1.05/1.10Kgs (Typ./Max.) - Clear, Hard coating (2H), Antireflection

4.NEC NL10276AC30-42C Backlight Features:

Lamp Features: Type Position Quantity Shape Life(Hours) Lamp Exchange
WLED Edge light type (Bottom side) - - 70K(Typ.) Replaceable (15LHS202)
Interface Features : Position Backlight Driver Type
- With LED Driver Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
STM MSB24038P6 1.25 mm 6 pins 1 pcs
Driver Electrical : Voltage Supply Current Supply Power Consumption
10.8/12.0/12.6V (Min./Typ./Max.) 0.88/1.21A (Typ./Max.)

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
